• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1981 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 342713

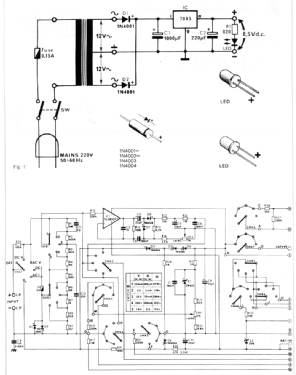

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-60 Hz, 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multimeter - Multimetro digitale UK 428 - Amtron, High-Kit, Amtroncraft;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 175 x 100 mm / 10.6 x 6.9 x 3.9 inch

• Notes

• Visualizzazione 3 1/2 digit a LED. Indicazione massima 1999 o -1999. Punto decimale automatico. Indicatore di fuori portata.
  Portate:

  • Tensioni CC: 220 mV - 2 - 20 - 200 - 2.000 V
  • Tensioni CA: 220 mV - 2 - 20 - 200 - 1.000 V
  • Correnti CC: 200 µA - 2 - 20 - 200 mA - 2 A
  • Resistenze: 2 kΩ - 20 MΩ.

  Precisione: Tensioni CC 200 mV: ± 0,2%, altre scale ± 0,5% f.s.
  Tensioni CA, Correnti CC e Resistenze: 1% su f.s.


• Price in first year of sale
• 140,000.00 ITL

• Mentioned in
• -- Original prospect or advert (“Radio Rivista” organo ufficiale dell’ARI Italia, numero 2, febbraio 1981.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
