Filtro Cross-Over 3 Vie UK 805

Amtron, (High-Kit, Amtroncraft); Milano

Data
Forum
Pictures
Collections

  • Year
  • 1970–1973
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 319867

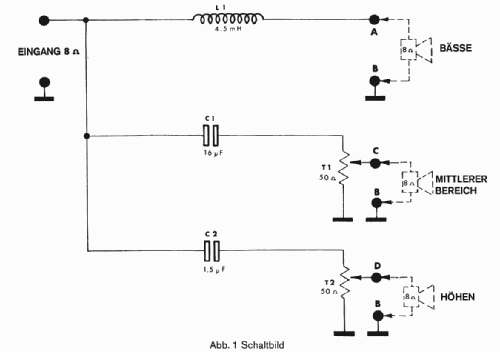

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Printed Circuit Board
  • from Radiomuseum.org
  • Model: Filtro Cross-Over 3 Vie UK 805 - Amtron, High-Kit, Amtroncraft;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 70 x 50 x 140 mm / 2.8 x 2 x 5.5 inch
  • Notes

  • Filtro cross-over a 3 vie con attenuazione 6 dB per ottava. Potenza massima applicabile 25 W, impedenza 8 Ω.

  • Mentioned in
  • -- Original prospect or advert (Catalogo Amtron “Scatole di Montaggio Elettroniche” n° 6 1972/1973.)
  • Literature/Schematics (1)
  • Amtron Katalog 71/72
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
