High-Kit Radioricevitore AM-FM UK510
Amtron, (High-Kit, Amtroncraft); Milano
- Country
- Italy
- Manufacturer / Brand
- Amtron, (High-Kit, Amtroncraft); Milano
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237718

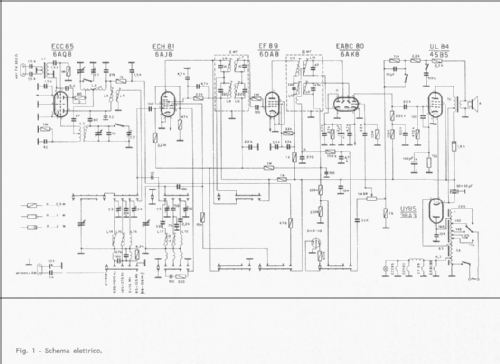

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: High-Kit Radioricevitore AM-FM UK510 - Amtron, High-Kit, Amtroncraft;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 440 x 190 x 140 mm / 17.3 x 7.5 x 5.5 inch
- Notes
-
Gamme d'onda:
- FM: 85 - 105 MHz ricezione trasmissioni in FM, audio TV, trasmissioni radio sperimentali in stereofonia.
- OM: 520 - 1610 kHz ricezione trasmissioni europee in AM.
- OL: 145 - 370 kHz ricezione trasmissioni in OL e Filodiffusione.
- OC: 6 - 16 MHz ricezione servizi internazionali di informazioni e radioamatori
Comandi: Selettore di gamma, controllo volume, controllo tono. Presa fono.
Scatola di montaggio.
- Literature/Schematics (1)
- Sperimentare n. 2 e n. 3, 1968
- Author
- Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
