• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1970 ??

• Category
• Commercial Transmitter (TX not Transceiver)

• Radiomuseum.org ID
• 319814

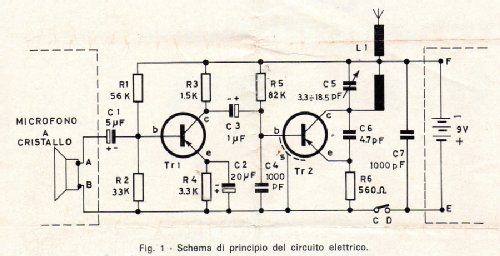

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AC128 AF124

• Main principle
• Transmitter

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Microtrasmettitore FM UK 105/C - Amtron, High-Kit, Amtroncraft;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 69 x 104 x 40 mm / 2.7 x 4.1 x 1.6 inch

• Notes

• Piccolo trasmettitore operante sulla gamma 88 ÷ 108 MHz che può quindi essere ricevuto da qualsiasi apparecchio operante in FM in un raggio massimo di circa 30 metri.

• Mentioned in
• -- Original prospect or advert (Catalogo Amtron “Scatole di Montaggio Elettroniche” n° 6 1972/1973.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
