• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1972

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 161188

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• BF333 BF333 BF332 BF332 BF332 BC109 AC187

• Main principle
• Superheterodyne (common)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 117-125; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 0.06 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

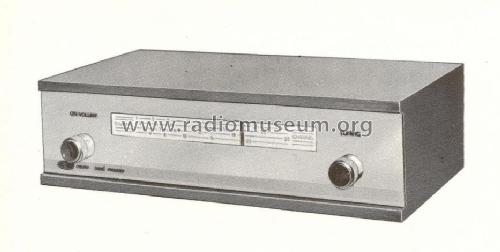

• Model: Ricevitore supereterodina CB - 27 MHz UK365 - Amtron, High-Kit, Amtroncraft;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 300 x 85 x 150 mm / 11.8 x 3.3 x 5.9 inch

• Notes
• Frequenza di rete: 50-60 Hz
  Gamma coperta: 26,965 - 27,255 MHz Canali (tarati direttamente sulla scala): da 1 a 23
  Sensibilità su tutta la gamma per rapporto S/N migliore di 8 dB: ~1 µV
  Impedenza d'uscita (per cuffia): ~2000 Ohm
  Impedenza d'uscita (con amplificatore UK 195): 4 Ohm
  Potenza d'uscita (su cuffia): 60 mW
  Potenza d'uscita (con amplificatore UK 195): 1,5 W
  Diodi impiegati: 4 × 10D1, AA119, 1N914, BA148, Varicap BB105G, Zener 1N757A.

  Apparecchio in scatola di montaggio (kit) o preassemblato.

• Mentioned in
• Amtron Catalogo Kit N.6

• Literature/Schematics (1)
• Selezione Radio-TV Marzo 1972

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
