• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1969

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 253134

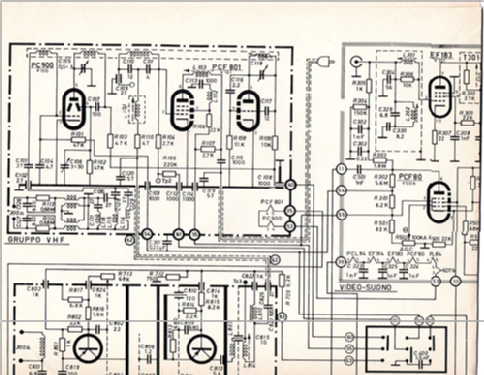

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PC900 PCF801 EF183 EF184 PCL84 6DT6 PL84 PCF80 PCL85 12CG7 PL504 PY81 DY87 24BM1

• Number of Transistors

• Semiconductors
• AF239 AF139 OA90 OA85 OA85 BY127 BY127

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• from Radiomuseum.org

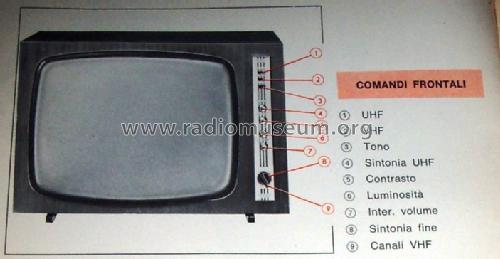

• Model: Televisore da 24" High Kit UK1050 - Amtron, High-Kit, Amtroncraft;

• Shape
• Chassis only or for «building in»

• Notes

• Tubo catodico 24BMI 24" 110° autoprotetto.


  Sebbene la documentazione indichi 24BMI, con ogni probabilità la sigla corretta del CRT è 24BM1.

• Mentioned in
• Libretto originale High Kit

• Literature/Schematics (1)
• Sperimentare, nn. 3-4-5 - 1969

• Author
• Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
