• Country
• Italy

• Manufacturer / Brand
• Amtron, (High-Kit, Amtroncraft); Milano

• Year
• 1971

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 198176

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 & 2 x 4,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

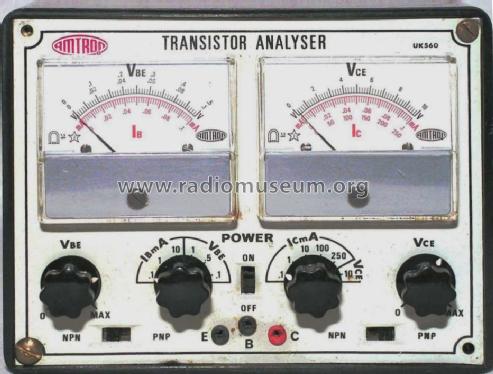

• Model: Analizzatore per Transistor / Transistor Analyzer UK560 - Amtron, High-Kit, Amtroncraft;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 175 x 135 x 58 mm / 6.9 x 5.3 x 2.3 inch

• Notes

• Prüf - und Meßgerät für Transistoren zur gleichzeitigen Messung des Stromes und der Spannung, sowohl des Eingangs und des Ausgangs.

  Due strumenti indicatori che consentono la lettura contemporanea delle misure.

  Misure sui transistor PNP o NPN: Misura della corrente di base in tre portate: 0,1 - 1 - 10 mA. Misura della tensione base-emettitore in 3 portate: 0,1 - 1 - 5 V. Misura della corrente di collettore in 5 portate: 0,1 - 1 - 10 - 100 - 250 mA.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Mentioned in
• AMTRON Elektronik Bausätze

• Literature/Schematics (1)
• -- Original prospect or advert (Amtron Scatole di Montaggio Elettroniche Catalogo 6 1972/1973)

• Literature/Schematics (2)
• Amtron Katalog 71/72

• Author
• Model page created by Wolfgang Feige. See "Data change" for further contributors.

• Other Models

• Here you find 325 models, 322 with images and 249 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Amtron, (High-Kit, Amtroncraft); Milano
