PLL Synthesized Receiver XE 1568

Amway Corp.; Ada, MI

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Amway Corp.; Ada, MI

Year
1996 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
309424

Schematics

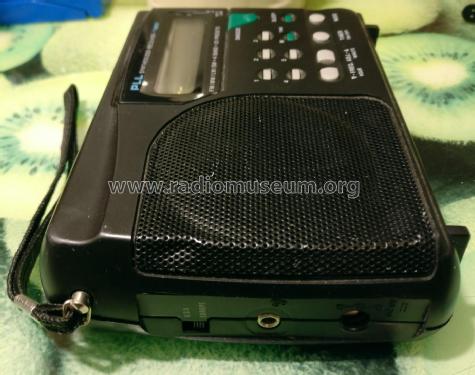

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2374443) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

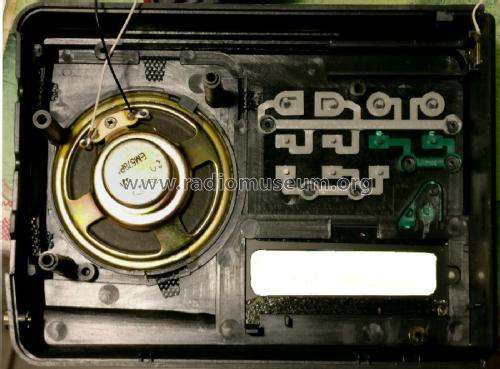

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2374445) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2374447) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2374448) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2374449) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2374450) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

PLL Synthesized Receiver XE 1568; Amway Corp.; Ada, MI (ID = 2375310) Radio — Amway Corp.; Ada, MI PLL Synthesized Receiver XE 1568 (1)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
PLL, Phase-locked loop

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Batteries / addl. power jack / AA: 4 × 1.5 / 6 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: PLL Synthesized Receiver XE 1568 - Amway Corp.; Ada, MI

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
145 x 110 x 43 mm / 5.7 x 4.3 x 1.7 inch
