Standbox AL9238
Andicom GmbH ; Pirna-Rottwerndorf (Ostd. ) (D)
- Country
- Germany
- Manufacturer / Brand
- Andicom GmbH ; Pirna-Rottwerndorf (Ostd. ) (D)
- Year
- 1990–1992
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 153160
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Standbox AL9238 - Andicom GmbH ; Pirna-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 260 x 820 x 236 mm / 10.2 x 32.3 x 9.3 inch
- Notes
-

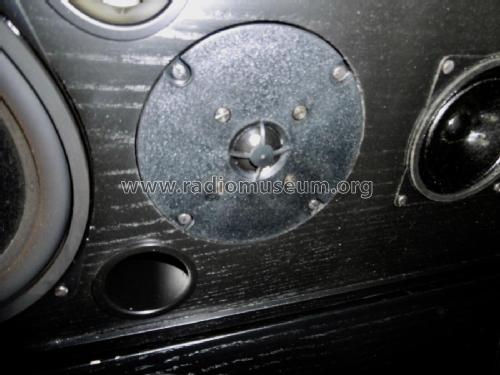

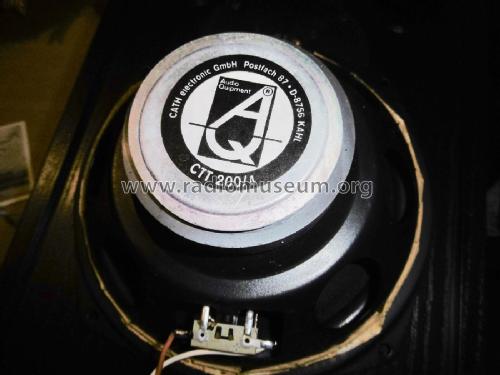

Bassreflex 3-Wege Box, 1 Hochtöner 25 mm, 1 Mitteltöner 100 mm, 2 Basslautsprecher 200 mm, Übertragungsbereich 32 Hz ....20 kHz, Impedanz 8 Ohm, Musikbelastbarkeit 200 Watt.
- Net weight (2.2 lb = 1 kg)
- 14.5 kg / 31 lb 15 oz (31.938 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
- Other Models
-
Here you find 24 models, 21 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
