• Country
• United States of America (USA)

• Manufacturer / Brand
• Andrea Radio Corp.; Long Island (NY)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 351563

• • Brand: Deresnadyne

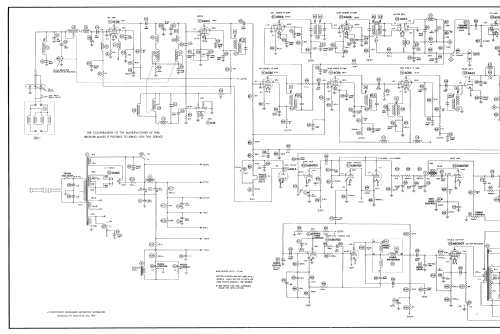

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6CB6 6AK5 6J6 6CB6 6CB6 6CB6 6AL5 6AU6 12AU7 6AU6 6BA6 6AU6 6AL5 6SQ7 6K6GT 6SN7GT 6SN7GT 6S4 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2C-VL17 Ch= VL17 - Andrea Radio Corp.; Long

• Shape
• Console with any shape - in general

• Notes

• Andrea model 2C-VL17 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis VL17, VHF tuner FM-5203 and picture tube 17CP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 152, folder 1, dated 11-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
