2CR-P12WB Ch= RQ12T-2 + P12WB
Andrea Radio Corp.; Long Island (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Andrea Radio Corp.; Long Island (NY)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176069
-
- Brand: Deresnadyne
Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6CB6 6U8 6AB4 6BH6 EM81 6BE6 6BH6 6BH6 6BH6 6AL5 6AL5 12AX7 12AU7 12AX7 6V6GT 6V6GT 5U4GT
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2CR-P12WB Ch= RQ12T-2 + P12WB - Andrea Radio Corp.; Long
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Andrea Radio Model 2CR-P12WB is an AC operated 17 Tube AM-FM Receiver with Audio Amplifier and 4 Speed Automatic Record Changer. Chassis RQ12T-2 is the Tuner and Chassis P12WB is an Audio Amplifier.
- Literature/Schematics (1)

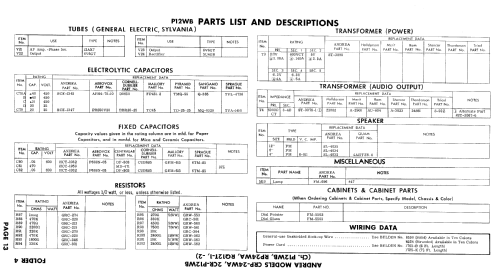

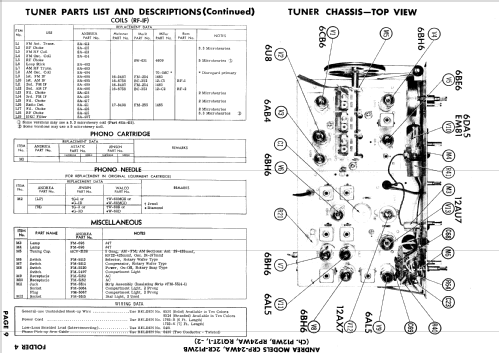

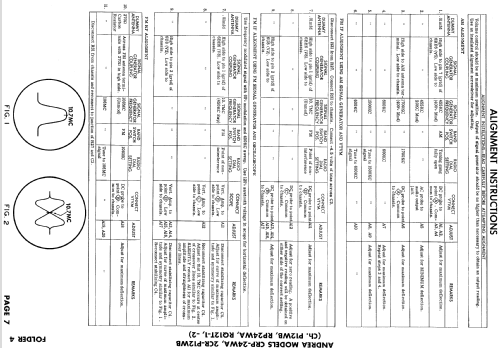

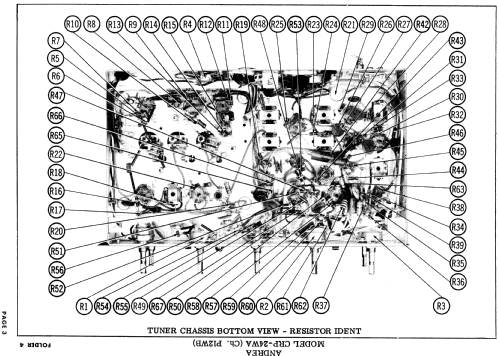

- Photofact Folder, Howard W. SAMS (Date 10-58, Set 416, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
