• Country
• United States of America (USA)

• Manufacturer / Brand
• Andrea Radio Corp.; Long Island (NY)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 312655

• • Brand: Deresnadyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BA6 12AX7 6BE6 6BA6 6AU6 6AL5 12AD7 6AV6 6X5GT 12AX7 6V6GT 6V6GT 6V6GT 6V6GT 5Y3GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Andrea CRP-24W - Andrea Radio Corp.; Long

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Andrea model CRP-24W is an AC operated FM-AM tuner with amplifier chassis and 3 speed automatic record changer.

• Literature/Schematics (1)

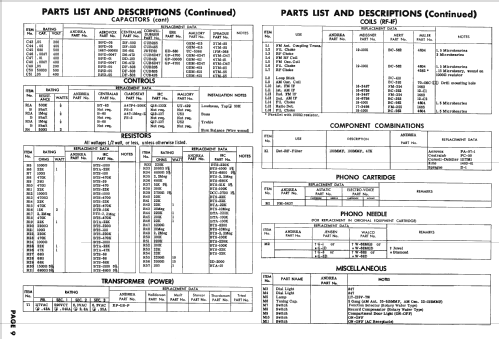

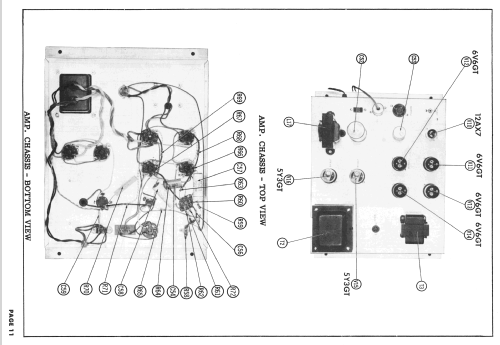

• Photofact Folder, Howard W. SAMS (Set 367 Folder 4 dated 8-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 225 models, 69 with images and 206 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Andrea Radio Corp.; Long Island (NY)
