CRP-24WA Ch= RQ12T-1 + RP24WA
Andrea Radio Corp.; Long Island (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Andrea Radio Corp.; Long Island (NY)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176068
-
- Brand: Deresnadyne

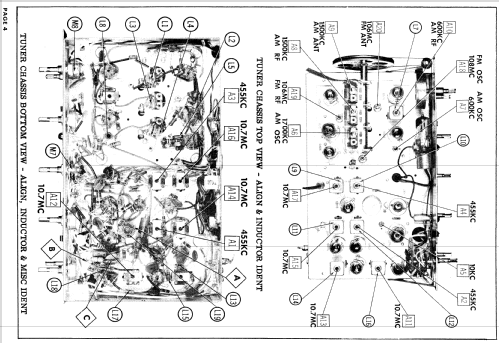

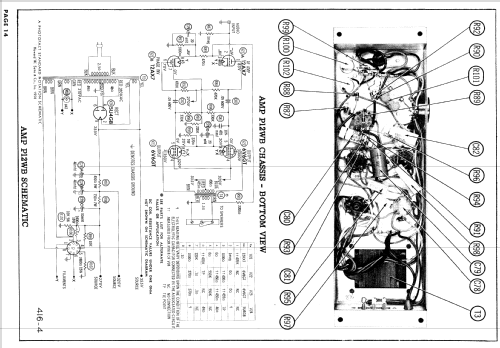

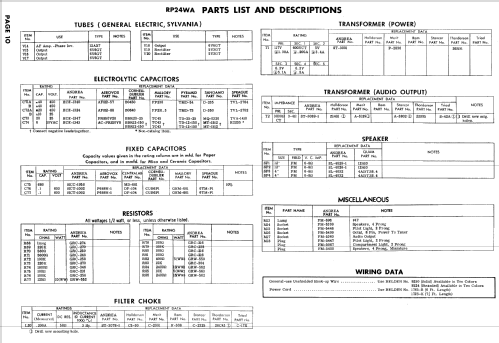

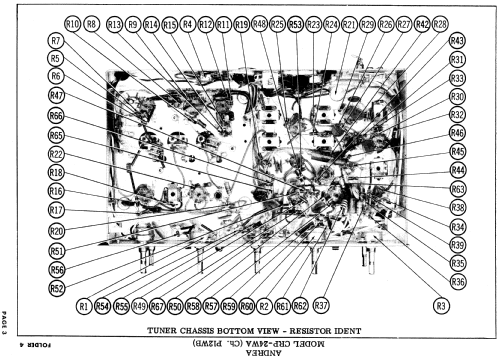

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6CB6 6U8 6AB4 6BH6 EM81 6BE6 6BH6 6BH6 6BH6 6AL5 6AL5 12AX7 12AU7 12AX7 6V6 6V6 6V6 6V6 5Y3 5Y3
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: CRP-24WA Ch= RQ12T-1 + RP24WA - Andrea Radio Corp.; Long
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Andrea Radio Model CRP-24WA is an AC operated 20 Tube AM-FM Receiver with Audio Amplifier and 4 Speed Automatic Record Changer. Chassis RQ12T-1 is the Tuner and Chassis RP24WA is an Audio Amplifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-58, Set 416, Folder 4)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
