• Country
• United States of America (USA)

• Manufacturer / Brand
• Andrea Radio Corp.; Long Island (NY)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 337960

• • Brand: Deresnadyne

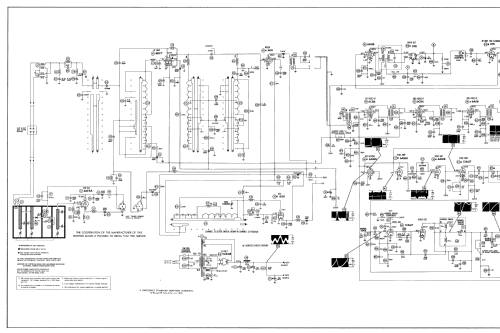

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BZ7 6U8 6CB6 6CB6 6AS8 6AW8 6AW8 6AU6 6T8 6AQ5 12AU7 6W6GT 12AU7 6CU6 6AX4GT 1B3GT 5U4GB 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: MC-4021 Ch= V021 - Andrea Radio Corp.; Long

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Andrea model MC-4021 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis V021, VHF tuner FM-5324 and picture tube 21ALP4A.



• Literature/Schematics (1)

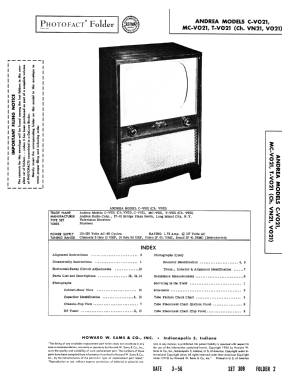

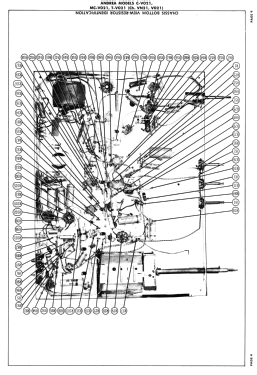

• Photofact Folder, Howard W. SAMS (Set 309 Folder 2 dated 3-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
