• Country
• United States of America (USA)

• Manufacturer / Brand
• Andrea Radio Corp.; Long Island (NY)

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82365

• • Brand: Deresnadyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / Either AC or DC: 105-125 V or Battery Pack: 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

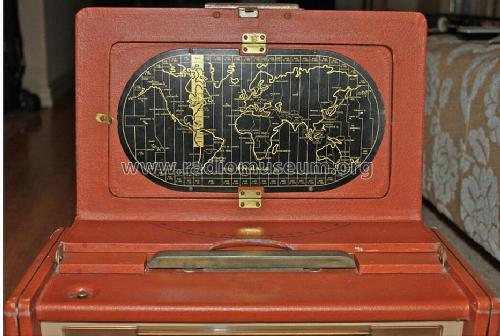

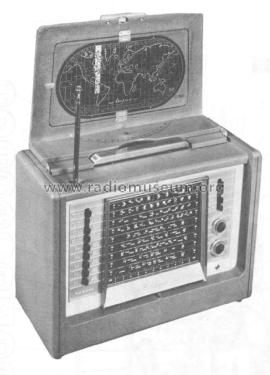

• Model: W69P Spacemaster Deluxe - Andrea Radio Corp.; Long

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 17.5 x 12 x 8 inch / 445 x 305 x 203 mm

• Notes

• Andrea model W69P is a three power portable 9 band receiver.

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 371 Folder 1 dated 9-57)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
