WF2LB-VS323-1 Sharp Focus Television Ch= VS323-1
Andrea Radio Corp.; Long Island (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Andrea Radio Corp.; Long Island (NY)
- Year
- 1960 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 355577
-
- Brand: Deresnadyne
Courtesy of Anthony Shields.
Courtesy of Anthony Shields.
Courtesy of Anthony Shields.
Courtesy of Anthony Shields.
Courtesy of Anthony Shields.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes

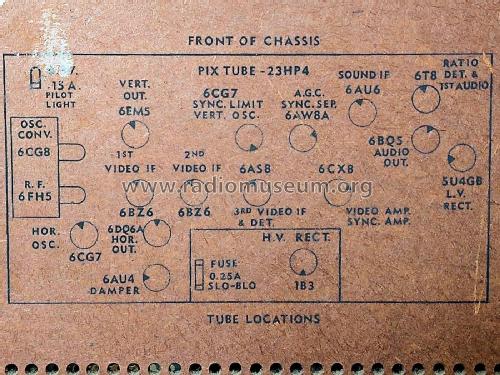

- 6FH5 6CG8 6BZ6 6BZ6 6AS8 6CX8 6CG7 6DQ6A 6EM5 6CG7 6AW8A 6AU6 6T8 6BQ5 6AU4 1B3 5U4GB 23HP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: WF2LB-VS323-1 Sharp Focus Television Ch= VS323-1 - Andrea Radio Corp.; Long
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Andrea WF2LB-VS323-1 Sharp Focus Television is a 23" b/w TV with US standard VHF Tuner Channels 2 thru 13.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 495, Folder 2, Aug. 1960.)
- Author
- Model page created by Jerry Elarton. See "Data change" for further contributors.
