- Country
- Belgium
- Manufacturer / Brand
- Anex (see also Radio AN); Elsegem, Wortegem-Petegem
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 357283

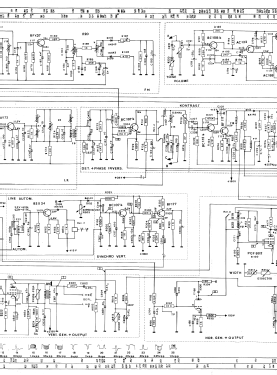

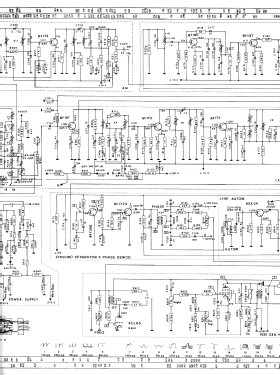

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors
- AF139 AC132 AC187 AC188 AC127 BC107 BC108 BC172 BF173 BF117 BF184 BF173 BF167 BFY37 BFY39 BSX24 B40C2200 ZL15 ZF24 E220C10 BY127 V60C4 BA143 OA90 1N4148 1N542
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: TR1 - Anex see also Radio AN;
- Notes
-
Transistors and diodes are only listed one per type
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
- Other Models
-
Here you find 2 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Anex (see also Radio AN); Elsegem, Wortegem-Petegem
