• Country
• Spain

• Manufacturer / Brand
• Anglo Española de Electricidad (AEESA); Barcelona

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156749

• • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
  • Brand: AEESA

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 HBC91 HL92 HY90

• Main principle
• Superheterodyne (common); ZF/IF 472,5 kHz; 1 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 2 W (unknown quality)

• from Radiomuseum.org

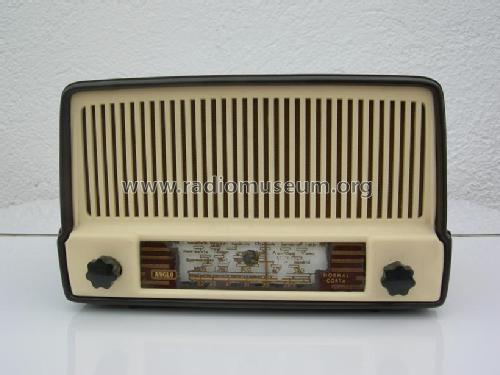

• Model: 082-K - Anglo Española de Electricidad

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Price in first year of sale
• 1,869.00 ESP

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
