• Country
• Spain

• Manufacturer / Brand
• Anglo Española de Electricidad (AEESA); Barcelona

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157510

• • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
  • Brand: AEESA

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• HCH81 HF93 HBC91 HL94

• Main principle
• Superheterodyne (common); ZF/IF 472,5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.9 W (unknown quality)

• from Radiomuseum.org

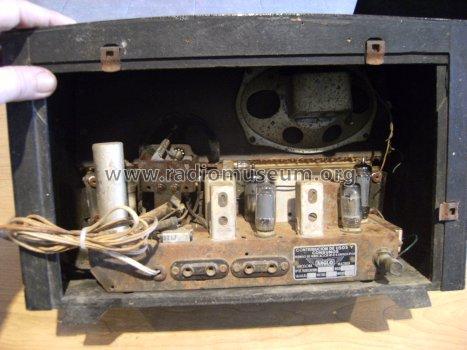

• Model: 280-I - Anglo Española de Electricidad

• Notes
• Rectificador E125-C100.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
