• Country
• Spain

• Manufacturer / Brand
• Anglo Española de Electricidad (AEESA); Barcelona

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152035

• • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
  • Brand: AEESA

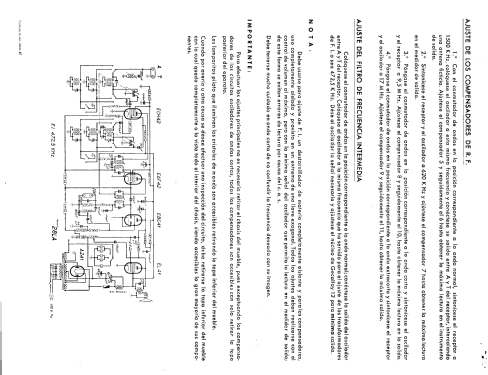

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 472,5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3.9 W (max.)

• from Radiomuseum.org
• Model: 28-LA - Anglo Española de Electricidad

• Notes
• Gama de ondas: Normal y Pesquera de 156 a 515 mts.Corta de 30 a 52,5 mts.Extracorta de 16,6 a 28,5 mts.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
