• Country
• Spain

• Manufacturer / Brand
• Anglo Española de Electricidad (AEESA); Barcelona

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154590

• • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
  • Brand: AEESA

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF93 EBC91 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 472,5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

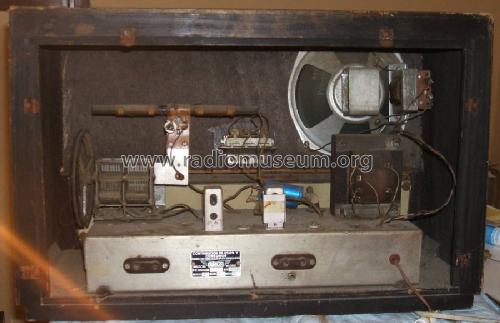

• Model: 381-H - Anglo Española de Electricidad

• Shape
• Tablemodel with Push Buttons.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
