• Country
• Spain

• Manufacturer / Brand
• Anglo Española de Electricidad (AEESA); Barcelona

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 171850

• • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
  • Brand: AEESA

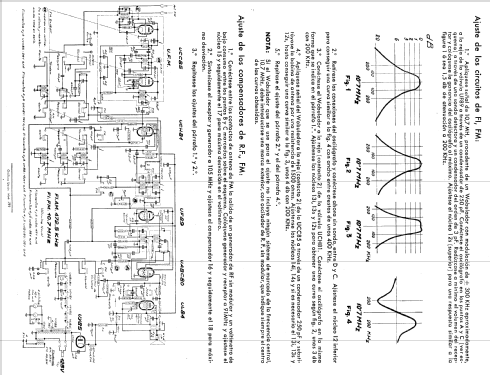

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 472.5/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 384-FM - Anglo Española de Electricidad

• Shape
• Tablemodel with Push Buttons.

• Notes
• Onda Normal de 570 á 1600 kHz.
  Onda Corta I de 1.6 á 5.25 MHz.
  Onda Corta II de 5.5 á 16 MHz.
  FM de 88 á 108 MHz.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Anuncios ABC 16/03/1960 - 28/04/1961

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
