• Country
• Spain

• Manufacturer / Brand
• Anglo Española de Electricidad (AEESA); Barcelona

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111198

• • alternative name: Sdad. Anglo Esp. de El. || Sociedad Anglo
  • Brand: AEESA

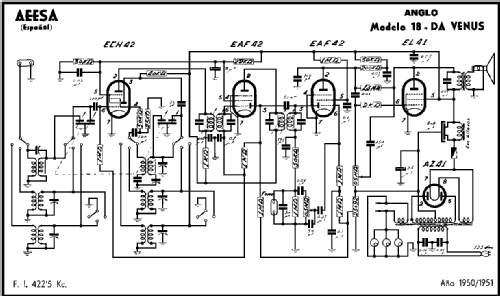

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 472,5 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Venus 18 DA - Anglo Española de Electricidad

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 433 x 286 x 230 mm / 17 x 11.3 x 9.1 inch

• Notes
• Gama de Ondas:Normal y Pesquera (1920 á 585 Khz). Corta (10 á 5,75 Mhz). Extracorta (18 á 10,5 Mhz).
  Serie Estelar 1951 y serie 1952.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 2,799.00 ESP

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers. (Anuncio La Vanguardia Española 18/10/1950 y 29/12/1951)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
