• Country
• Japan

• Manufacturer / Brand
• Anritsu Corporation; Atsugi-shi, Kanagawa

• Year
• 1951 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 357298

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SK7 6SJ7 6SJ7 6V6 VRD90/50 80

• Main principle
• TRF with regeneration

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org

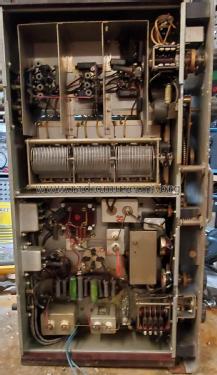

• Model: Straight Receiver and Power Supply ARR-3016 and ARZ-7089 - Anritsu Corporation; Atsugi-

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Notes

• Frequency range 35 - 3500 kHz

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Author
• Model page created by Clint Millett. See "Data change" for further contributors.
