• Country
• United States of America (USA)

• Manufacturer / Brand
• Ansley, Arthur, Mfg. Co; Doylestown (PA)

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122030

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6CB6 6U8 6BJ6 6BE6 6BA6 6AU6 6AU6 6T8 6V6 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: R-1 - Ansley, Arthur, Mfg. Co;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.5 x 8.5 x 10 inch / 419 x 216 x 254 mm

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)

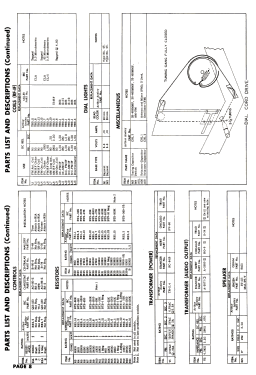

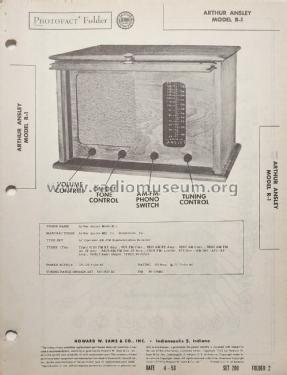

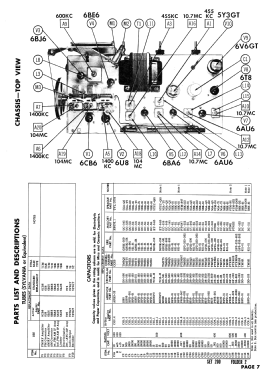

• Photofact Folder, Howard W. SAMS (200-2)

• Author
• Model page created by Daniel Schwartzman. See "Data change" for further contributors.
