- Country
- United States of America (USA)
- Manufacturer / Brand
- Ansley, Arthur, Mfg. Co; Doylestown (PA)
- Year
- 1952/1953 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 128116

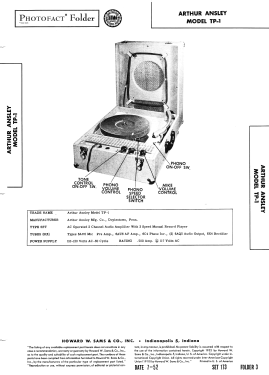

Picture from service manual.
SAMS

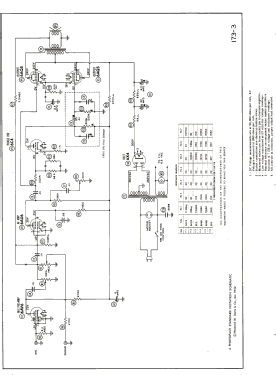

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: TP-1 - Ansley, Arthur, Mfg. Co;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Arthur Ansley model TP-1 is an AC operated 2 channel Audio Amplifier with a 3 speed manual record player. The correct phono cartridges are Walco W-5MGA or W5MGS and W-5A or W-5S or Jensen A75 or A85 and A75LP or A85LP.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-52, set 173, folder 3)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
