2-Element-Kanalgruppen-Antenne 1187.701
Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
- Country
- Germany
- Manufacturer / Brand
- Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
- Year
- 1960 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 253729
-
- Brand: VEB Antennenwerke Bad Blankenburg; Bad B.
Firmenkatalog 1968
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: 2-Element-Kanalgruppen-Antenne 1187.701 - Antennenwerke Bad Blankenburg
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-

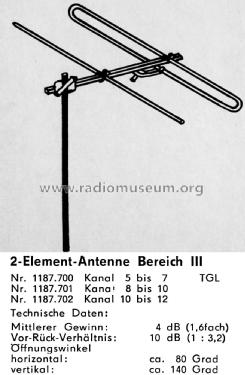

Erweiterbare 2-Element-Antenne für die VHF-Kanäle 8 bis 10; Fußpunktwiderstand: 240 Ω; mittlerer Gewinn: 4 dB; Vor/Rück-Verhältnis: 10 [dB]; Öffnungswinkel: 80° (hor.), 140° (vert.).
- Price in first year of sale
- 25.95 Mark
- Mentioned in
- Branchenbuch für Elektro-Akustik (DDR, 1963)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
