Fernsehantenne 3751 SCA17D
Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
- Country
- Germany
- Manufacturer / Brand
- Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen
- Year
- 1975 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 252560
-
- Brand: VEB Antennenwerke Bad Blankenburg; Bad B.
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

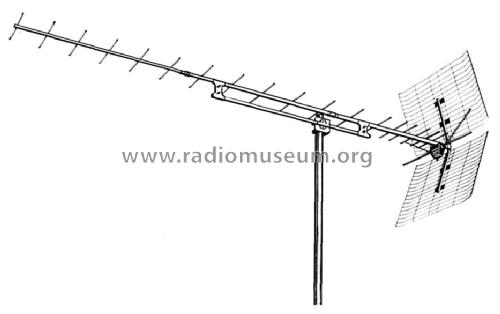

- Model: Fernsehantenne 3751 SCA17D - Antennenwerke Bad Blankenburg
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 2420 x 0 x 0 mm / 95.3 x 0 x 0 inch
- Notes
-
UHF-Antenne für die Kanäle 21-60, Vorzugskanäle: 52-60;
Aufbau: 17-Elemente;
Gewinn: 8,5-16,5 dB; Vor-Rück-Verhältnis: 30; Öffnungswinkel: 20°-52° (hor.), 20°-62° (vert.).
- Net weight (2.2 lb = 1 kg)
- 3.1 kg / 6 lb 13.3 oz (6.828 lb)
- Price in first year of sale
- 101.00 Mark
- Mentioned in
- Katalog Hochantennen / Zimmerantennen (RFT 1984)
- Literature/Schematics (1)
- Sortimentskatalog Elektroakustik (DDR, 1984)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
