• Country
• Germany

• Manufacturer / Brand
• Antennenwerke Bad Blankenburg /Thür., VEB; - vorm. Heliogen

• Year
• 1985

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 121048

• • Brand: VEB Antennenwerke Bad Blankenburg; Bad B.

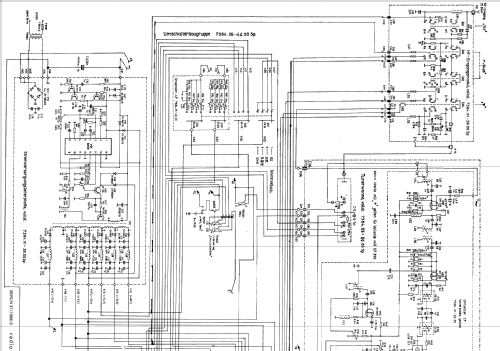

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

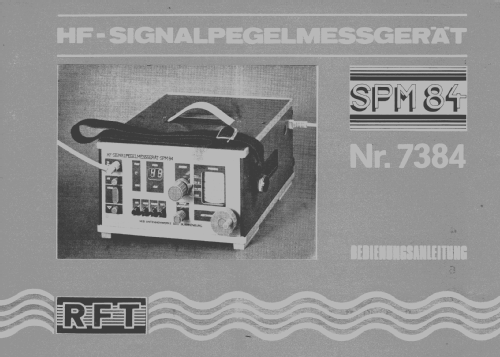

• Model: HF-Signalpegelmeßgerät SPM84 - Antennenwerke Bad Blankenburg

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 120 x 240 mm / 7.9 x 4.7 x 9.4 inch

• Notes
• Anschluß für Stereo-Kopfhörer. Separate Mono-Endstufe für eingebauten Lautsprecher. VHF Band I, II, III; UHF Band IV / V. - Version mit digitaler Anzeige wahrscheinlich nicht mehr in Serie produziert.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Mentioned in
• radio fernsehen elektronik H.3/1988

• Literature/Schematics (1)
• Zeitschrift "Funkamateur" H.7/1985

• Author
• Model page created by Harry Gehrmann. See "Data change" for further contributors.
