657
Apel; Liège
- Country
- Belgium
- Manufacturer / Brand
- Apel; Liège
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 186213
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 145; 190; 220; 245 Volt
- Loudspeaker
- 3 Loudspeakers / Ø 15 cm = 5.9 inch
- Material
- Wooden case
- from Radiomuseum.org

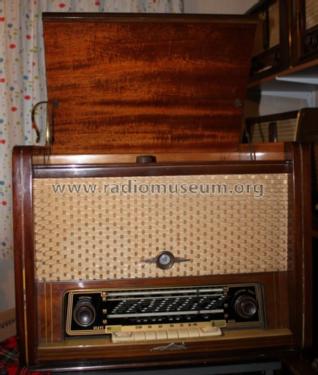

- Model: 657 - Apel; Liège
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 585 x 425 x 415 mm / 23 x 16.7 x 16.3 inch
- Notes
- 4 wave bands: LO, MO, CO and 49meter CO stretch band. Turntable/changer automatic from BSR for 17,25 and 30 cm discs, with 2-sided head (normal and 78T), 4 speeds(16,33,45 and 78 rpm).
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
