- Country
- United States of America (USA)
- Manufacturer / Brand
- Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 358015
-
- alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6CB6 or 6AQ5 or 6BC5 6J6 6CB6 6CB6 6CB6 6AC7 6AU6 6T8 6AQ5 12AU7 6SN7GT 6S4 6AL5 6SN7GT 6BQ6GT 6AX4GT 1B3GT 5U4G 20DP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 924 - Apex Electric, Pool; Chicago;
- Shape
- Console with any shape - in general
- Notes
-
Apex model 924 is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 20DP4A.
- Literature/Schematics (1)

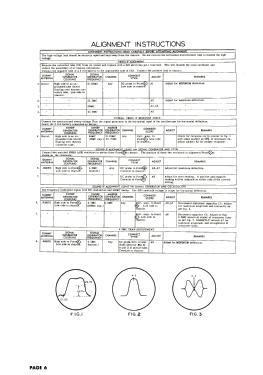

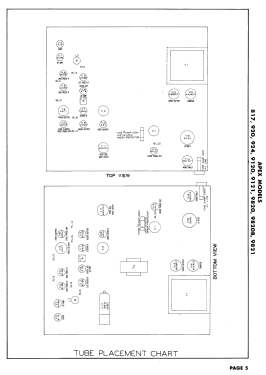

- Photofact Folder, Howard W. SAMS (Set 181, folder 3, dated 10-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
