Supertone 9ARY Class "B" Super-Heterodyne
Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Year
- 1934 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329842
-
- alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T

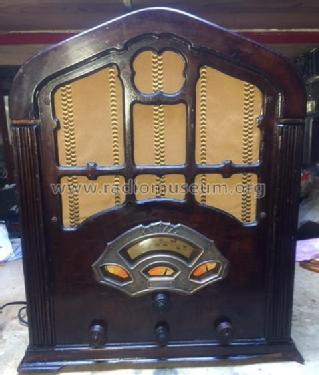

Picture from Serafim Pires.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; Export model
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Supertone 9ARY Class "B" Super-Heterodyne - Apex Electric, Pool; Chicago;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 380 x 480 x 310 mm / 15 x 18.9 x 12.2 inch
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Author
- Model page created by Serafim Pires. See "Data change" for further contributors.
