Audio Amplifier A-850
Approved Electronic Instr. Corp.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Approved Electronic Instr. Corp.
- Year
- 1952 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 126374
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Audio Amplifier A-850 - Approved Electronic Instr.
- Shape
- Chassis only or for «building in»
- Notes
-
The AC Operated Audio Amplifier Model A-850 is made by Approved Electronic Instrument Corp., 142 Liberty Street, New York. It uses Stancor Transformers for Power and for Audio Output.
- Literature/Schematics (1)

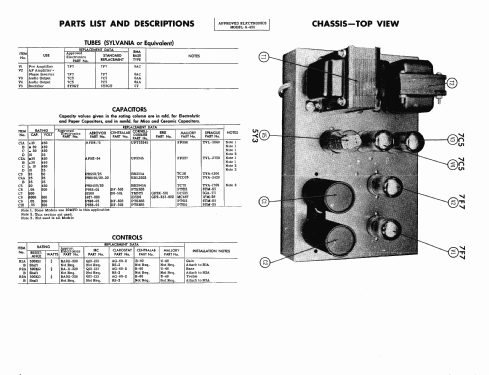

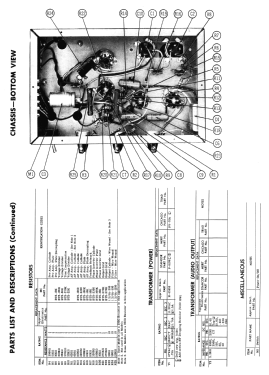

- Photofact Folder, Howard W. SAMS (Set 175 Folder 5 8-1952)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
