• Country
• Italy

• Manufacturer / Brand
• Aquila Radio; Cornigliano, Genova

• Year
• 1934 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334045

• Number of Tubes
• 5

• Valves / Tubes
• 58 2A7 57 2A5 5Z3

• Main principle
• Superheterodyne (common)

• Wave bands

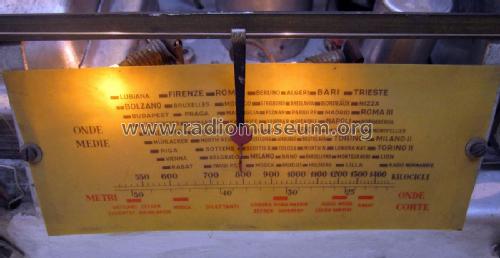

• Broadcast and Short Wave (SW).

• Power type and voltage

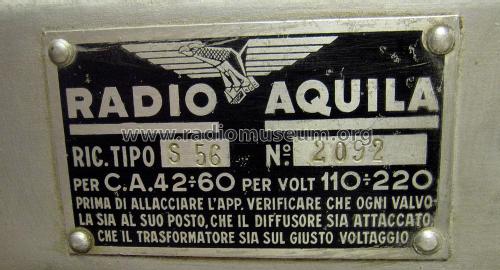

• Alternating Current supply (AC) / 42-60Hz, 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S56 - Aquila Radio; Cornigliano,

• Shape

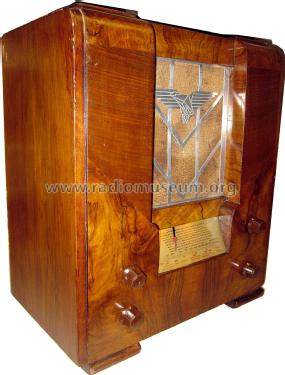

• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 390 x 440 x 230 mm / 15.4 x 17.3 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Author
• Model page created by Spartaco Gori. See "Data change" for further contributors.
