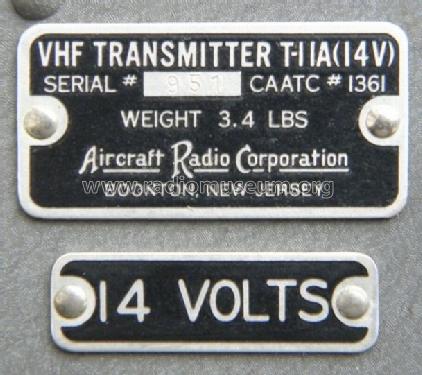

VHF Transmitter T-11A
Arc Radio Corp.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arc Radio Corp.; New York (NY)
- Year
- 1955 ??
- Category
- Commercial Transmitter (TX not Transceiver)
- Radiomuseum.org ID
- 241514
- Number of Tubes
- 4
- Main principle
- Transmitter
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / 14 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF Transmitter T-11A - Arc Radio Corp.; New York NY
- Shape
- Rack
- Dimensions (WHD)
- 125 x 120 x 160 mm / 4.9 x 4.7 x 6.3 inch
- Notes
-
Sender für Flugfunk, 5 Kanäle (Steckquarze) im Bereich 116 - 132 MHz. Amplitudenmodulation, Sendeleistung (Trägerleistung) 2 W. Der Sender wird durch den Umformer des zugehörigen Empfängers mit Anodenspannung versorgt.
- Net weight (2.2 lb = 1 kg)
- 1.450 kg / 3 lb 3.1 oz (3.194 lb)
- Mentioned in
- - - Manufacturers Literature (Instruction Book for A. R. C. Type 12 Equipment)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
