CD Player Alpha 7
A&R Cambridge Ltd. (ARCAM); Waterbeach, Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- A&R Cambridge Ltd. (ARCAM); Waterbeach, Cambridge
- Year
- 1996
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 210207
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 115; 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: CD Player Alpha 7 - A&R Cambridge Ltd. ARCAM;
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 85 x 290 mm / 16.9 x 3.3 x 11.4 inch
- Notes
-

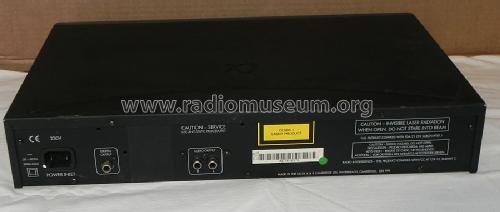

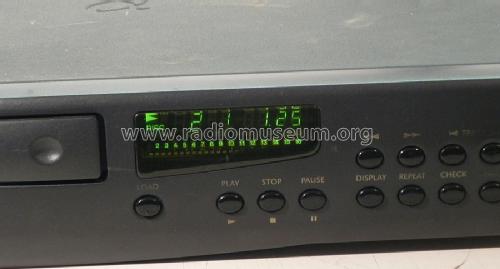

A stereo hi-fi compact disc player with a digital display and remote control. With RCA sockets for analogue audio output and digital output.
Specification
Conversion System 16 bit multi-level Delta Sigma digital to analogue conversion
(PCM1710U)
Laser Pickup 3 beam (Sony KSS-240A)
Laser wavelength 780nm
Numerical Aperture 0.45
Dynamic range 96dB
Signal to noise ratio 100dB (CCIR)
Harmonic Distortion <0.01% (0dB, 1kHz)
Frequency response 20Hz - 20kHz (-0.5dB)
Output level 2.4V rms (0dB)
Output impedance 150 ohms
Min. load impedance 5k ohm
Digital Output Connection 75 ohm coaxial
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature (Arcam 7, 8, 8SE, 9 CD Players Handbook)
- Literature/Schematics (2)
- - - Manufacturers Literature (Arcam 7/8/9 CD Service Manual Issue 1 s/n 0001 July '96)
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
