Multitester ART-1000

• Country
• Japan

• Manufacturer / Brand
• ARC Co., Ltd; (where?)

• Year
• 1985 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 245792

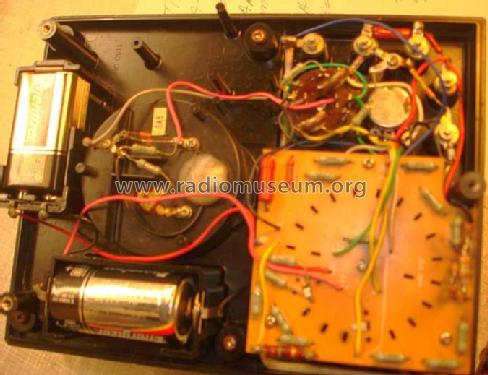

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1 x 9 & 1 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Multitester ART-1000 - ARC Co., Ltd; where?

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 180 x 70 mm / 5.5 x 7.1 x 2.8 inch

• Notes

• Multitester ARC. Model ART-1000.
  100.000 Ohm/V



• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Manuel Henrique Oliveira-Jesus. See "Data change" for further contributors.
