• Country
• Belgium

• Manufacturer / Brand
• Radio Arel (A.R.E.L.); Antwerpen, Schoten

• Year
• 1951/1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75716

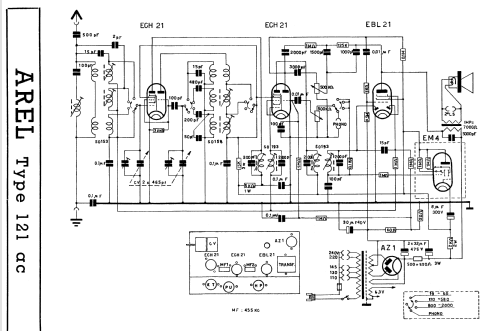

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1 EM4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

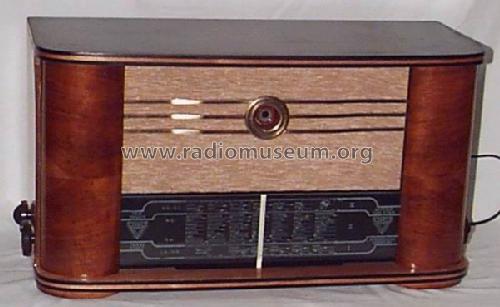

• Model: 121AC - Radio Arel A.R.E.L.; Antwerpen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 360 x 270 mm / 26.8 x 14.2 x 10.6 inch

• Price in first year of sale
• 375.00 Hfl

• External source of data
• Radio en televisie revue

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
