• Country
• Italy

• Manufacturer / Brand
• AREL; Milano

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 288867

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 6X5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Power out
• 5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

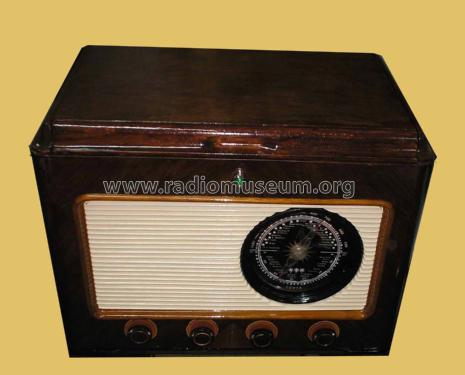

• Model: Eco - AREL; Milano

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 600 x 480 x 380 mm / 23.6 x 18.9 x 15 inch

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Author
• Model page created by José Moreno-Conej. See "Data change" for further contributors.

• Other Models

• Here you find 42 models, 23 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
