- Country
- Italy
- Manufacturer / Brand
- Argus - Radio Argus, Acer S.A.; Milano
- Year
- 1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244678
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
- Material
- Bakelite case
- from Radiomuseum.org

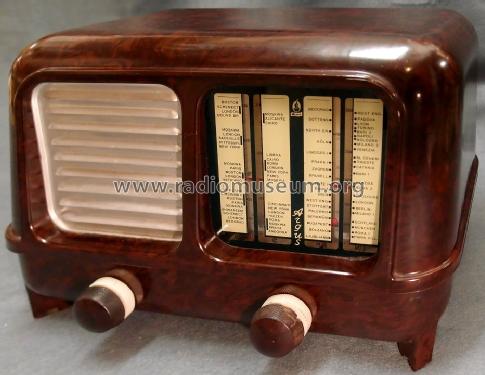

- Model: Rubino - Argus - Radio Argus, Acer S.A.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 300 x 200 x 180 mm / 11.8 x 7.9 x 7.1 inch
- Notes
-
Onde Medie divise in 2 gamme e 2 gamme Onde Corte.
Apparecchi con mobiletto apparentemente identico, ma con differente marchio:
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Argus - Radio Argus, Acer S.A.; Milano
