- Country
- United States of America (USA)
- Manufacturer / Brand
- Aria (brand), Allied Stores, Detrola; (where?)
- Year
- 1936 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347163
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org

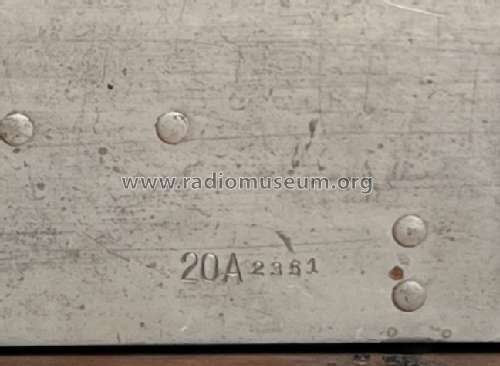

- Model: 20A - Aria brand, Allied Stores,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 11.5 x 15 x 8.5 inch / 292 x 381 x 216 mm
- Notes
-
AM band 540-1700kc, SW 2.2-6.4mc
Manufactured by Sentinel Radio Corp., rebranded as ARIA for sale by Allied Stores. See Sentinel 20A.
- Author
- Model page created by Steve Dymale. See "Data change" for further contributors.
