Aristona H235A
NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Country
- Belgium
- Manufacturer / Brand
- NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 95135

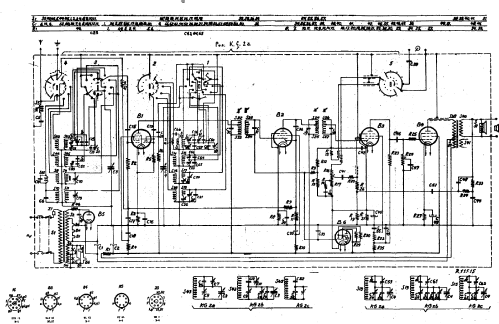

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Aristona H235A - NSF Nederlandsche
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 485 x 365 x 245 mm / 19.1 x 14.4 x 9.6 inch
- Source of data
- - - Data from my own collection
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
