Aristona H24A
NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Country
- Belgium
- Manufacturer / Brand
- NSF (Nederlandsche Seintoestellen Fabriek); Leuven
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174630

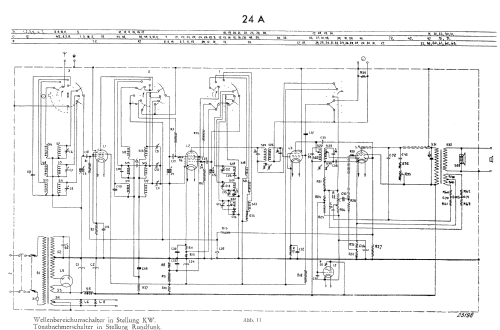

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 444 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Aristona H24A - NSF Nederlandsche
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 370 x 240 mm / 22.8 x 14.6 x 9.4 inch
- Notes
- The "Manuel de la Radio 1940" erroneously mentions the EL1 as one of the tubes in stead of the EM1.
- Net weight (2.2 lb = 1 kg)
- 13.6 kg / 29 lb 15.3 oz (29.956 lb)
- Price in first year of sale
- 2,625.00 BEF
- Source of data
- Manuel de la Radio 1940, van Cortenberghe
- Mentioned in
- -- Original-techn. papers. (Prospect "Intercontinentale serie NSF Aristona 1939")
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
