• Country
• Germany

• Manufacturer / Brand
• Arlt & Co. (Walter Arlt), vor 1945; Berlin

• Year
• 1936

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 269978

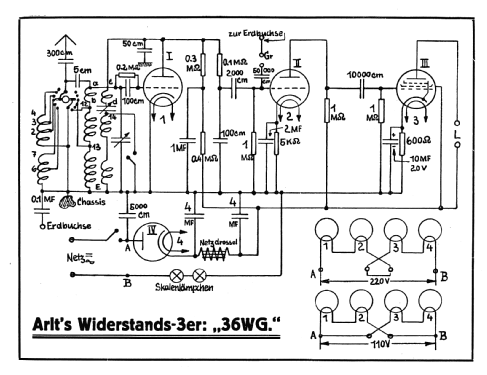

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• VC1 VC1 VL1 VY1

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Widerstandsdreier 36W.G. - Arlt & Co. Walter Arlt, vor 19

• Shape
• Chassis only or for «building in»

• Notes

• Arlt  bietet mit dem Bauplan Nr. 101 einen vollständigen Bausatz zum Selbsbau an.

• Mentioned in
• - - Manufacturers Literature (Arlt Bauplan Nr. 101, 1936)

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.

• Other Models

• Here you find 6 models, 6 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Arlt & Co. (Walter Arlt), vor 1945; Berlin
