• Country
• Italy

• Manufacturer / Brand
• ART - Panart; Milano

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 317010

• • Brand: Depaphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 DM70 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 140, 160, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Material
• Bakelite case

• from Radiomuseum.org

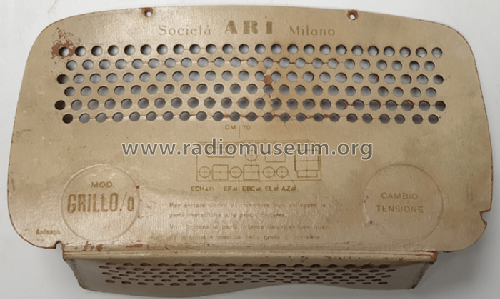

• Model: Grillo/0 - ART - Panart; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 140 x 105 mm / 10.2 x 5.5 x 4.1 inch

• Notes

• Simile al modello "Grillo". Si differenzia per la presenza dell'occhio magico

• Author
• Model page created by Pierpaolo Di Martino. See "Data change" for further contributors.
