Kendall's

ART - Panart; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1958 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 358988
    • Brand: Depaphon

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Kendall's - ART - Panart; Milano
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 360 x 220 x 170 mm / 14.2 x 8.7 x 6.7 inch
  • Notes

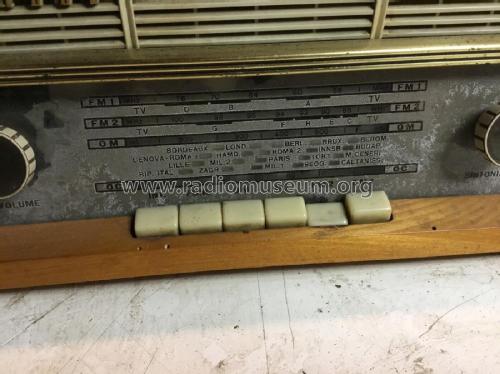

  • Wave bands

    • FM1 = 57 - 80 MHz (TV channels A, B, D)
    • FM2 = 87 - 100 MHz (TV channels C, E, H, F, G)
    • OC = 30 - 75 m
    • OM = 185 - 585 m
  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
