• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 146067

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 35C5 35C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: 1093 CH= 1.48300 - Arvin, brand of Noblitt-Sparks

• Notes

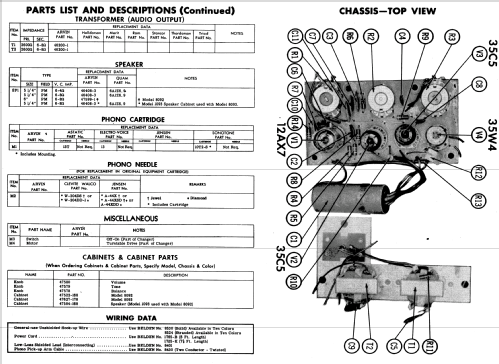

• AC operated stereo amplifier with automatic record changer. Sams photofact set 489 folder 3 date 6-60 features the Arvin models 1093, 8092 with chassis 1.48300 and the model 8093 with chassis 1-48600 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 489 folder 3 date 6-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 698 models, 487 with images and 567 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Arvin, brand of Noblitt-Sparks Industries
