140-P Ch= RE-209
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 32915
Beitman
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 117 / 90 & 7.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.18 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: 140-P Ch= RE-209 - Arvin, brand of Noblitt-Sparks
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12.3 x 10.5 x 5.5 inch / 312 x 267 x 140 mm
- Notes
- The model 140-P is a three power portable Superheterodyne receiver with Loop Antenna. This set was also produced in Canada - RCC Arvin section pages 1 & 2. Top, bottom and grille of sheet steel, hammered silver grey effect. Laminated plastic wrap-around in simulated brown leather finish. Handle of genuine leather.
- Price in first year of sale
- 34.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition

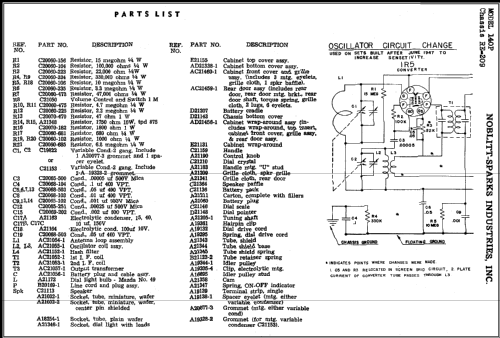

- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Radio College of Canada, Individual Circuit Service, 1927-1953)
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 08, 1948 (SAMS Photofact Date 9-47, set 25, folder 4715-6)
- Literature/Schematics (2)

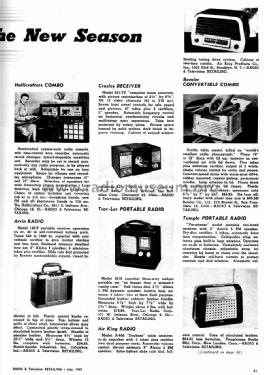

- Radio Retailing (Radio & Television R.) (June 1947 page 22. July 1947 page 41.)
