2573 Ch= 1.42200
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144905
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 2573 Ch= 1.42200 - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, with any shape - general.
- Notes
-

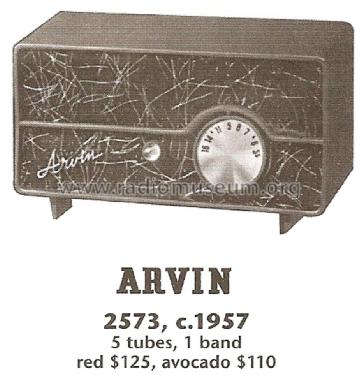

The Arvin Model 2573 is an AC/DC Operated 5 Tube AM-FM Receiver.
Model Cabinet 2572 ivory or green 2573 red or avocado
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-58, Set 386, Folder 6)
- Literature/Schematics (2)
- Table Top Radios Vol. 4 Stein 2003 (page 52.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
