• Country
• United States of America (USA)

• Manufacturer / Brand
• Arvin, brand of Noblitt-Sparks Industries

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70439

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

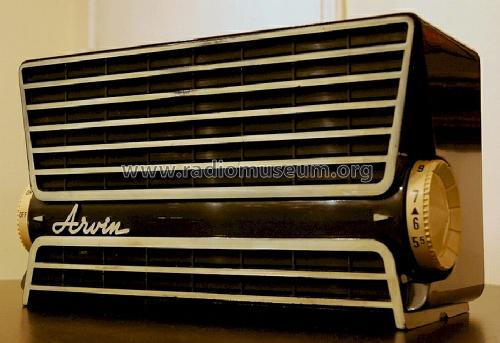

• Model: Arvin 2581 Ch= 1.43800 - Arvin, brand of Noblitt-Sparks

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Arvin Model 2581 is an AC/DC Operated 5 Tube AM Receiver.



  Colours and material:

  Plastic

  ivory

  olive

  black

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)

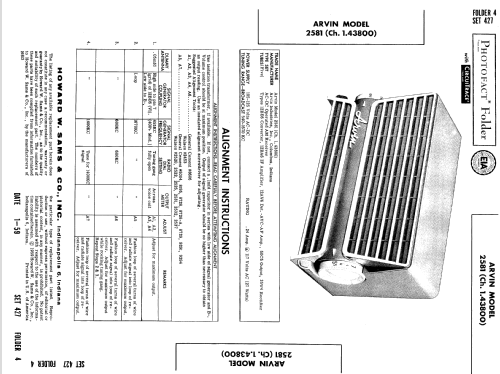

• Photofact Folder, Howard W. SAMS (Date 1-59, Set 427, Folder 4)

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 40.)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
